Filler breathers with dipsticks TMDA-TMDFA-TMDFA/BR

Circular head cap with male thread and vertical projections for a better grip.
It is manufactured in black with a red cap that includes the graphic fill symbol and the word ”OIL”.
It is equipped with a blued steel level rod.
The standard rod has a length of 200mm.
For orders of more than 250u it can be supplied with a custom length and with ”MIN-MAX” markings.
Max. working temperature +90°C.
It has characteristics similar to breather cap 480053-480070.Optionally and for adequate quantities it can be supplied with a flat flexible rod with the inscription ”FLEX”.
Version with polyurethane foam filter with PPI 60, version with sintered bronze filter with filtration degree of 30μ.
Available in 3/8” – 1/2” – 3/4” – 1” NPT thread.

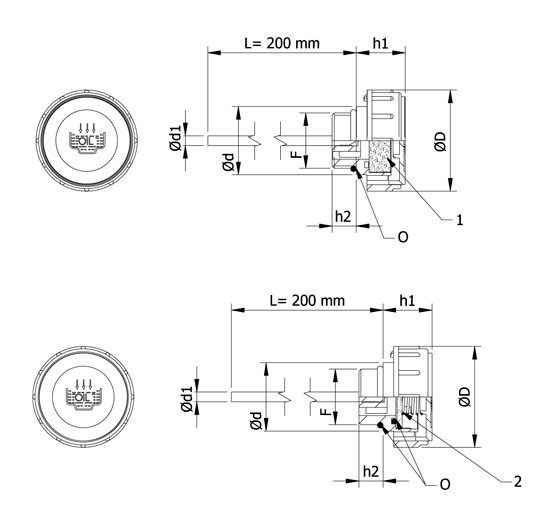

1 – Polyurethane air filter.
2 – Sintered bronze air filter.
O – O-ring.
