Filler breathers with anti-splash disc and filter TMDF/AL – TMDFA/AL

Black cap with circular head, with male thread and vertical ribs for a better grip. It includes a red cap with the graphic filling symbol and the text ”OIL”. Made of Polyamide 66 that ensures high mechanical resistance at high and low temperatures. Working temperature from -30°C to +100°C.
Oil resistant 70 Shore rubber O-ring.
Polyurethane air filter (PPI 60) located under the cover, easy to remove, clean and replace.
These filler caps allow the circulation of a high volume of air through the vents located under the head and that prevent overpressures or depressions; its use is recommended in systems where the oil level varies abruptly.
It also includes the anti-splash disc, located under the thread and which protects the vents from occasional oil splashes produced during operation or transport.

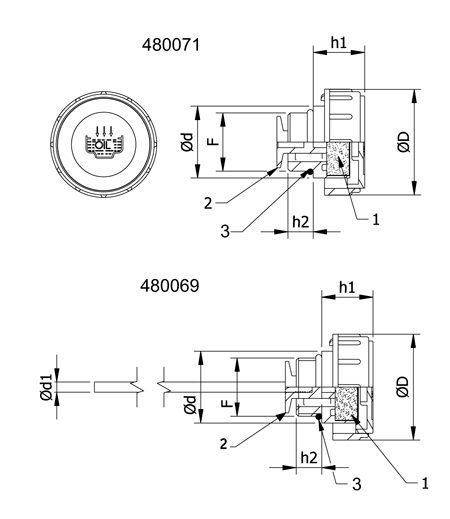

1 – Polyurethane air filter.
2 – Anti-splash disc.
3 – O-ring.
