480031
Closing plug with internal hex TCNB
Threaded cap with internal hexagon to occupy the minimum external space.
Made with reinforced thermoplastic resin PA66 with 30% fiberglass that guarantees its optimal mechanical resistance at high and low temperatures.
Asbestos-free fiber flat retaining washer (on request it can be supplied with an anti-oil rubber O-ring).
max temperature of use 100ºC.
P – Max. tightening torque for mounting.
Upon request, they can be manufactured in polyamide reinforced with 50% fiberglass to increase mechanical resistance and max. working temperature. up to 120°C continuously and peaks of 150ºC.

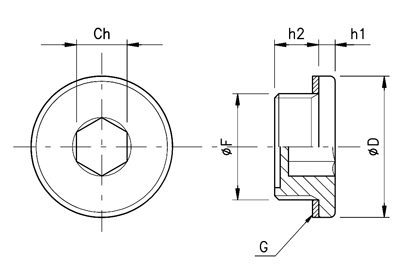

G= Flat fiber gasket
| Code | F | Ch | D | h1 | h2 | Nm | Nm 50% FV | CAD |
|---|---|---|---|---|---|---|---|---|
| 48003106000 | G 1/4” | 6 | 18 | 3 | 8 | 3÷5 | 5÷7 |  |
| 48003109000 | G 3/8” | 8 | 22,5 | 3,5 | 10,5 | 6÷8 | 8÷10 | |
| 48003112000 | G 1/2” | 10 | 28 | 4 | 10 | 8÷10 | 10÷12 | |
| 48003119000 | G 3/4” | 12 | 35 | 4 | 10,5 | 10÷12 | 18÷20 | |
| 48003114000 | M 14×1,5 | 6 | 20 | 2,5 | 9 | 3÷5 | 5÷7 | |
| 48003116000 | M 16×1,5 | 8 | 22,5 | 3,5 | 10,5 | 6÷8 | 8÷10 | |
| 48003118000 | M 18×1,5 | 10 | 26 | 3 | 10 | 7÷9 | 10÷12 | |
| 48003120000 | M 20×1,5 | 10 | 28 | 3,5 | 10,5 | 7÷9 | 10÷12 | |
| 48003122000 | M 22×1,5 | 10 | 28 | 3,5 | 10,5 | 7÷9 | 10÷12 | |
| 48003126000 | M 26×1,5 | 12 | 35 | 3 | 11,5 | 10÷12 | 18÷20 | |
