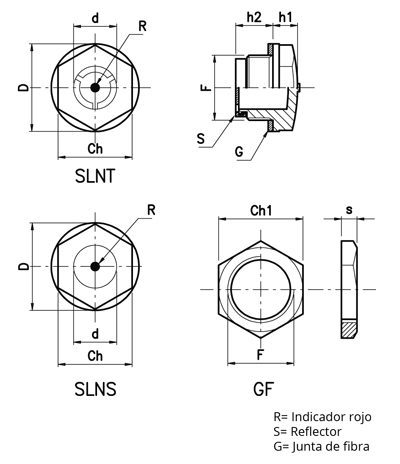

Oil level SLNT with contrast screen & SLNS without contrast screen

Threaded oil level gauges, hex head with shoulder. Used in oil tanks, gearboxes and hydraulic machinery and tools in general.
Made of transparent polyamide that provides good mechanical resistance and is impermeable to mineral oil, gasoline, lubricants, petroleum, solvents and most chemical agents. Avoid contact with alcohol-based solutions, high-temperature antifreeze fluids, and hot water over 80°C.
Fiber joint (optional flat NBR seal on request that adds the /G suffix to the code).
The level gauge features a “hot-painted” red dot in the center (SLNS model). The SLNT model is provided with a contrasting white display for a clearer indication of the oil level.
Dimensional stability up to a temperature of 90°C.
The maximum suggested tightening torque for installation is indicated in the table (Nm).
For wall thicknesses less than 5mm, use GF brass lock nuts.
Model SLNS-T/CX made of special resin resistant to fluids containing alcohol and antifreeze liquids.
