Filler breathers ø70 with filter / TMDF-70

Round headed filler breathers diam. 70 mm with vertical ribs for better grip, threaded connection. Standard production in black with red lid complete with graphic fill symbol and the text ”OIL”. Manufactured from polyamide 66 ensuring high mechanical resistance at both low and high temperatures (-30°C/-22°F to +100°C/212°F). Oil resistant NBR flat seal 70 Shore durometer.

The polyurethane air filter (60 PPI) is located under the lid, easy to remove, clean and reinstall. These filler breathers have been designed where is required a large capacity of air flow as hydraulic tanks subject to rapid changes in the internal fluid volume.

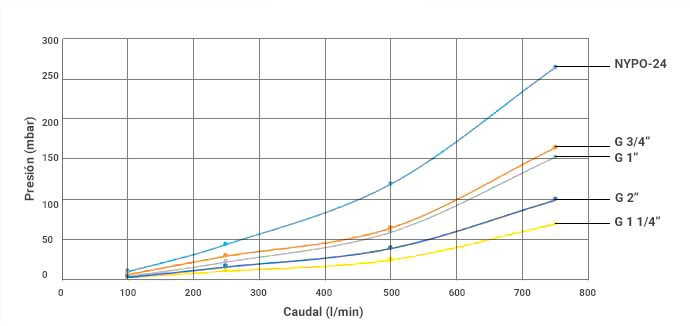

Airflow capacity up to 750 Lt/min (see graphic).

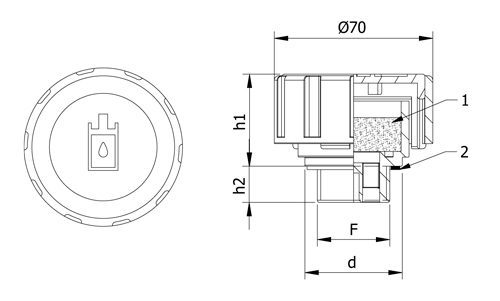

1 = Air filter
2 = NBR flat seal
