470093
4-digit numerator block with control knob

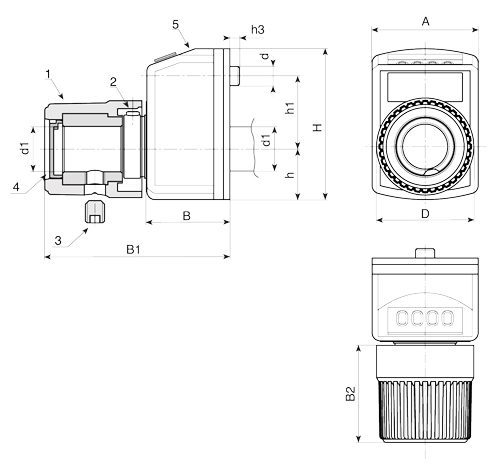

Materials:
1. Control knob made of black reinforced polyamide.
2. Black-oxide treated grub screw DIN 914 for fastening the bush to the shaft.
3. Black-oxide treated grub screw DIN 914 for fastening the knob to the shaft.
4. Central cap of the knob in orange color RAL 2004.
5. Numerator case made of glass fiber reinforced orange polyamide RAL 2004. Resistant to oils and greases.
Fixing system:
The block and the control knob are not attached to each other. First of all, the numerator block is secured to the shaft through the grub screw (2), then the control knob is mounted on the shaft by means of grub screw (3).
For the technical characteristics (xyz) of the numerator block, see product 470092.
| Code | A | H | B | B1 | B2 | h | h1 | h3 | D | d | d1 H10 | GR |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 470093xyz00 | 33 | 47 | 24 | 55 | 32 | 16,5 | 22 | 5 | 30 | 6 | 14 | 10 |
| 470093xyz01 | 33 | 47 | 24 | 55 | 32 | 16,5 | 22 | 5 | 30 | 6 | 14 | 12/5 |
| 470093xyz02 | 33 | 47 | 24 | 55 | 32 | 16,5 | 22 | 5 | 30 | 6 | 14 | 15 |
| 470093xyz03 | 33 | 47 | 24 | 55 | 32 | 16,5 | 22 | 5 | 30 | 6 | 14 | 17/5 |
| 470093xyz04 | 33 | 47 | 24 | 55 | 32 | 16,5 | 22 | 5 | 30 | 6 | 14 | 20 |
| 470093xyz05 | 33 | 47 | 24 | 55 | 32 | 16,5 | 22 | 5 | 30 | 6 | 14 | 25 |
| 470093xyz06 | 33 | 47 | 24 | 55 | 32 | 16,5 | 22 | 5 | 30 | 6 | 14 | 30 |
| 470093xyz07 | 33 | 47 | 24 | 55 | 32 | 16,5 | 22 | 5 | 30 | 6 | 14 | 35 |
| 470093xyz08 | 33 | 47 | 24 | 55 | 32 | 16,5 | 22 | 5 | 30 | 6 | 14 | 40 |
| 470093xyz09 | 33 | 47 | 24 | 55 | 32 | 16,5 | 22 | 5 | 30 | 6 | 14 | 50 |
| 470093xyz10 | 33 | 47 | 24 | 55 | 32 | 16,5 | 22 | 5 | 30 | 6 | 14 | 60 |
| 470093xyz11 | 33 | 47 | 24 | 55 | 32 | 16,5 | 22 | 5 | 30 | 6 | 14 | 80 |
| 470093xyz12 | 33 | 47 | 24 | 55 | 32 | 16,5 | 22 | 5 | 30 | 6 | 14 | 100 |
