470086 C INOX
Full stainless steel indexed clamping lever with threaded insert
Material: Body in precision-cast stainless steel AISI 304.
Inner parts in stainless steel AISI 303.
Spring in stainless steel AISI 302.
Surface finish, natural brushed.

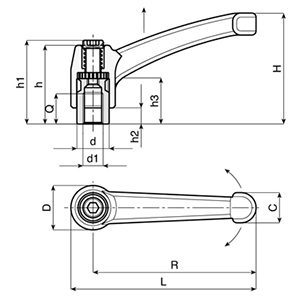

| Code | L | R | H | D | d | c | h | h1 | h2 | h3 | d1 | Q | CAD |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 47008604302 | 50 | 43 | 30 | 14 | 10 | 9 | 26 | 30 | 5 | 14 | M5 | 9 |  |
| 47008604303 | 50 | 43 | 30 | 14 | 10 | 9 | 26 | 30 | 5 | 14 | M6 | 9 | |
| 47008606301 | 75 | 65 | 45 | 19 | 14 | 13 | 32 | 34 | 7 | 14 | M6 | 10 | |
| 47008606302 | 75 | 65 | 45 | 19 | 14 | 13 | 32 | 34 | 7 | 14 | M8 | 10 | |
| 47008606303 | 75 | 65 | 45 | 19 | 14 | 13 | 32 | 34 | 7 | 14 | M10 | 10 | |
| 47008608301 | 91 | 80 | 57 | 22 | 16 | 16 | 40 | 42 | 8 | 16 | M8 | 14 | |
| 47008608302 | 91 | 80 | 57 | 22 | 16 | 16 | 40 | 42 | 8 | 16 | M10 | 13 | |
| 47008608303 | 91 | 80 | 57 | 22 | 16 | 16 | 40 | 42 | 8 | 16 | M12 | 12 | |
| 47008609301 | 107 | 94 | 65 | 26 | 20 | 18 | 47 | 50 | 10.5 | 19 | M10 | 17 | |
| 47008609302 | 107 | 94 | 65 | 26 | 20 | 18 | 47 | 50 | 10.5 | 19 | M12 | 17 | |
| 47008609303 | 107 | 94 | 65 | 26 | 20 | 18 | 47 | 50 | 10.5 | 19 | M14 | 17 | |
