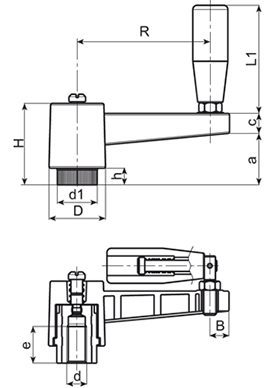

Indexed crank handle btc with fold away revolving handle and threaded insert
Material: PA Reinforced polyamide.
Treated threaded steel insert.
Side insert for the handle in brass
| Code | R | H | h | d1 | D | d | e | C | a | L1 | B | CAD |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 47001406331 | 65 | 46 | 10 | 19 | 27 | M8 | 18 | 13 | 30 | 54 | 9 |  |
| 47001406332 | 65 | 46 | 10 | 19 | 27 | M10 | 18 | 13 | 30 | 54 | 9 | |
| 47001406333 | 65 | 46 | 10 | 19 | 27 | M12 | 18 | 13 | 30 | 54 | 9 | |
| 47001408331 | 80 | 50 | 10,5 | 24,5 | 34 | M12 | 22 | 13 | 33 | 76 | 12 | |
| 47001408332 | 80 | 50 | 10,5 | 24,5 | 34 | M14 | 22 | 13 | 33 | 76 | 12 | |
| 47001408333 | 80 | 50 | 10,5 | 24,5 | 34 | M16 | 22 | 13 | 33 | 76 | 12 | |
| 47001411331 | 110 | 50 | 11 | 24,5 | 34 | M12 | 22 | 13 | 33 | 76 | 12 | |
| 47001411332 | 110 | 50 | 11 | 24,5 | 34 | M14 | 22 | 13 | 33 | 76 | 12 | |
| 47001411333 | 110 | 50 | 11 | 24,5 | 34 | M16 | 22 | 13 | 33 | 76 | 12 | |
