380033 T
Adjustable clamping lever with stainless steel stud
Material: Za Zinc die-cast.
Inner parts of stainless steel AISI 303.
Threaded part of stainless steel AISI 303.
Plastic coated, black. Matt structure.
Available with other thread and colors.

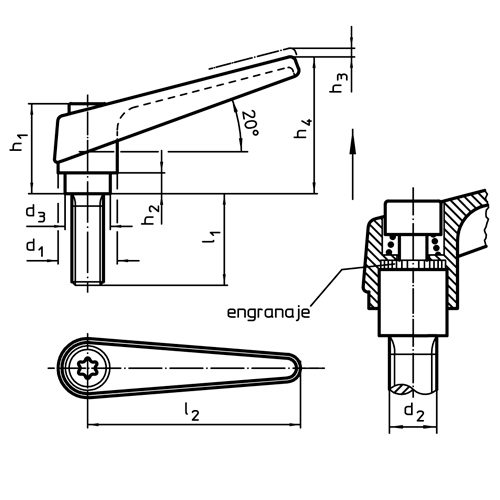

| Code | d1 | l2 | d2 | d3 | h1 | h2 | h3 | h4 | l1 | CAD |
|---|---|---|---|---|---|---|---|---|---|---|
| 38003300074 | 14 | 45 | M5 | 10 | 24,5 | 4 | 3 | 35 | 25 |  |
| 38003300164 | 14 | 45 | M6 | 10 | 24,5 | 4 | 3 | 35 | 25 | |
| 38003300184 | 14 | 45 | M6 | 10 | 24,5 | 4 | 3 | 35 | 40 | |
| 38003300334 | 18 | 62 | M8 | 13,5 | 31 | 6,5 | 3 | 45 | 16 | |
| 38003300364 | 18 | 62 | M8 | 13,5 | 31 | 6,5 | 3 | 45 | 32 | |
| 38003300384 | 18 | 62 | M8 | 13,5 | 31 | 6,5 | 3 | 45 | 50 | |
| 38003300454 | 22 | 74 | M10 | 16 | 36 | 8 | 3,5 | 52 | 25 | |
| 38003300474 | 22 | 74 | M10 | 16 | 36 | 8 | 3,5 | 52 | 40 | |
| 38003300489 | 22 | 74 | M10 | 16 | 36 | 8 | 3,5 | 52 | 63 | |
| 38003300554 | 25 | 89 | M12 | 19 | 43 | 11 | 4 | 63 | 32 | |
| 38003300574 | 25 | 89 | M12 | 19 | 43 | 11 | 4 | 63 | 50 | |
| 38003300594 | 25 | 89 | M12 | 19 | 43 | 11 | 4 | 63 | 80 | |
| 38003300664 | 30 | 108 | M16 | 23 | 50,5 | 12 | 5 | 76 | 50 | |
| 38003300674 | 30 | 108 | M16 | 23 | 50,5 | 12 | 5 | 76 | 63 | |
| 38003300684 | 30 | 108 | M16 | 23 | 50,5 | 12 | 5 | 76 | 80 | |
