420007

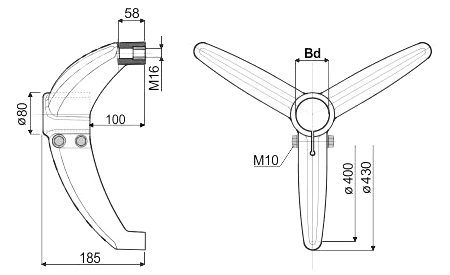

Tripod support base
Material: Black reinforced poliamide.
Threaded nickel plated brass insert.
Bolts & Nuts zinc plated or stainless steel (AISI 304).
Max tightening torque 3,6kgm.
On request and for a MOQ, bases in reinforced polypropylene, other colours.
N1*: Tube unthreading load.(N)
N2*: Max static load allowed.(N)
| Code | Bd (mm) | Bd (inches) | Bolts & Nuts | N1* | N2* | CAD |
|---|---|---|---|---|---|---|
| 42000780588 | 60,3 | 2 | Zinc plated | 9600 | 15800 |  |
| 42000782070 | 50,8 | – | Zinc plated | 9600 | 15800 | |
| 42000780590 | 48,3 | 1 1/2 | Zinc plated | 9600 | 15800 | |
| 42000780592 | 42,4 | 1 1/4 | Zinc plated | 9600 | 15800 | |
| 42000780271 | 45×45 | – | Zinc plated | 9600 | 15800 | |
| 42000780589 | 60,3 | 2 | Stainless steel (AISI304) | 9600 | 15800 | |
| 42000782071 | 50,8 | – | Stainless steel (AISI304) | 9600 | 15800 | |
| 42000780591 | 48,3 | 1 1/2 | Stainless steel (AISI304) | 9600 | 15800 | |
| 42000780593 | 42,4 | 1 1/4 | Stainless steel (AISI304) | 9600 | 15800 | |
| 42000780753 | 45×45 | – | Stainless steel (AISI304) | 9600 | 15800 | |
