Retaining ring
Material: Black reinforced poliamide.
Bolts & nuts in stainless steel.
Supplied assembled.

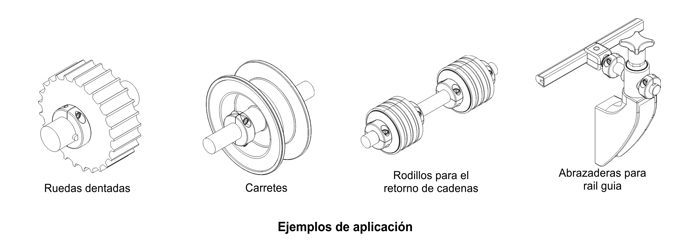

To be assembled on the shaft to obtain wheels axial blocking; to be assembled on pins for guides supporting to adjust the position of guides according to the bottle size.
Upon request and for a minimum quantity, it can be supplied with a special size of Bd and other colors

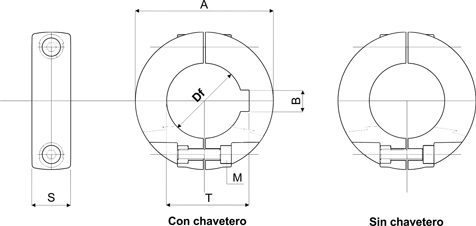

| Code | Version | Df (mm) | A (mm) | S (mm) | M (mm) | B (mm) | T (mm) | CAD |
|---|---|---|---|---|---|---|---|---|
| 42008182555 | With keyway | 20 | 40 | 14 | M4 | 6 | 22,8 |  |
| 42008182556 | With keyway | 25 | 50 | 14 | M5 | 8 | 28,3 | |
| 42008182557 | With keyway | 30 | 50 | 14 | M5 | 8 | 33,3 | |
| 42008182558 | With keyway | 35 | 65 | 14 | M5 | 10 | 38,3 | |
| 42008182559 | With keyway | 40 | 65 | 14 | M5 | 12 | 43,3 | |
| 42008182560 | Without keyway | 12 | 35 | 13 | M4 | – | – | |
| 42008182561 | Without keyway | 14 | 35 | 13 | M4 | – | – | |
| 42008182562 | Without keyway | 16 | 35 | 13 | M4 | – | – | |
| 42008182563 | Without keyway | 18 | 40 | 14 | M4 | – | – | |
| 42008182564 | Without keyway | 20 | 40 | 14 | M4 | – | – | |
| 42008182565 | Without keyway | 25 | 50 | 14 | M5 | – | – | |
| 42008182566 | Without keyway | 30 | 50 | 14 | M5 | – | – | |
| 42008182567 | Without keyway | 35 | 65 | 14 | M5 | – | – | |
| 42008182568 | Without keyway | 40 | 65 | 14 | M5 | – | – | |
