4100700142
COMPONENTS FOR INDUSTRY
470027 T

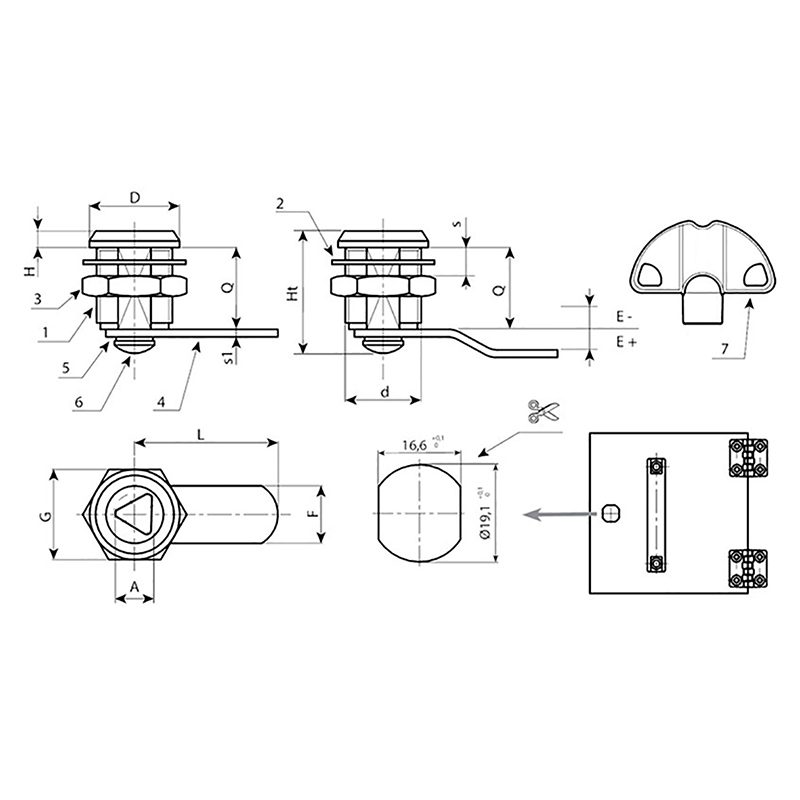

Universal lock with triangular insert key
(1) Die-cast zamak lock body M19 (stator) and rotor. 6 mm triangular insert key. Nickel-plated.
(2) Elastic washer d. 24×1 with bore d. 19.4.
(3) Steel hexagon lock nut M19x1.
(4) Steel locking lever (Qn design N flat – Qe design E bent outwards).
(5) Conical steel elastic washer d. 12×1.5.
(6) Steel Phillips dome head screw M5x8. Rotation:90°
(7) Red plastic key, Code 47002801002. ATTENTION: The key is not supplied. To be ordered separately.
Also available for 8mm.
| Code | A | d | D | L | Q | E | F | G | Ht | H | s(max.) | s1 | CAD |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 47002720001 | 6,5 | M19 | 22 | 38 | 20 | 0 | 16 | 22 | 31 | 4 | 6 | 2.5 |  |
| 47002722000 | 6,5 | M19 | 22 | 38 | 20 | 2 | 16 | 22 | 31 | 4 | 6 | 2.5 | |
| 47002725101 | 6,5 | M19 | 22 | 35 | 20 | 5 | 16 | 22 | 31 | 4 | 6 | 2.5 | |
| 47002729101 | 6,5 | M19 | 22 | 35 | 20 | 9 | 16 | 22 | 31 | 4 | 6 | 2.5 | |
