470083 INOX
Stainless steel catch plate for adjustable toggle latch
Drilled and sheared catch plate made of stainless steel (Aisi 304).
The toggle latch must be ordered separately from the catch plate.
COMBINABLE CATCH PLATES:
Art. 47008304101 combinable with products: 47008204101 y 47008204102.
Art. 47008306101 combinable with products: 47008206101, 47008206102, 47008211101 y 47008211102.

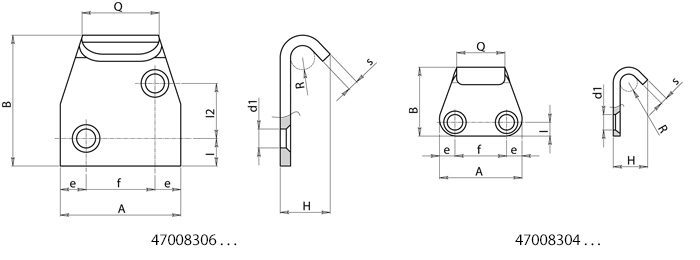

| Code | H | I | I2 | A | B | Q | e | f | R | d1 | s | CAD |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 47008304101 | 10 | 5 | – | 26 | 21 | 14 | 5,5 | 15 | 2,5 | 5,1 | 2 |  |
| 47008306101 | 14,5 | 8,5 | 16 | 35 | 38,5 | 22 | 7,5 | 20 | 3,5 | 5,5 | 2 | |
