820003
Adjustable stainless steel feet 200
Material: stainless steel AISI-303.
Optional: Hygienic Seal to provide a protective cover over the ball and socket arrangement.
Supplied as an accessory, not mounted.
Available for Ø100 self-adhesive non-slip rubber, order separatly with code 82007045002.
Ask for other threads and lengths..
Locknut available.
*Max. static load (vertical stud).

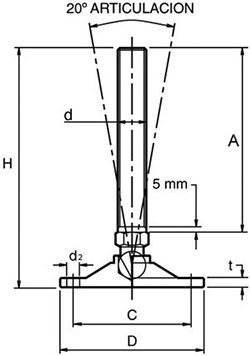

| Code | D | d | A | H | C | d2 | t | Kg* | CAD |
|---|---|---|---|---|---|---|---|---|---|
| 82000305501 | 50 | M8 | 60 | 82 | 40 | 5.5 | 4 | 300 |  |
| 82000305502 | 50 | M10 | 75 | 97 | 40 | 5.5 | 5 | 500 | |
| 82000305503 | 50 | M12 | 75 | 100 | 40 | 5.5 | 4 | 750 | |
| 82000306501 | 60 | M12 | 150 | 175 | 50 | 5.5 | 5 | 1250 | |
| 82000308501 | 80 | M16 | 75 | 106 | 68 | 6.5 | 6 | 1750 | |
| 82000310501 | 100 | M16 | 125 | 158 | 82 | 9 | 6.5 | 2500 | |
| 82000310502 | 100 | M20 | 150 | 189 | 82 | 9 | 6.5 | 2500 | |
| 82000312501 | 120 | M20 | 150 | 191 | 100 | 11 | 7.5 | 3750 | |
| 82000312502 | 120 | M24 | 150 | 206 | 100 | 11 | 7.5 | 3750 | |
