Adjustable feet with threaded stud

Base material: PA black reinforced polyamide.
Treated steel stud.
Locknut available.
*Max. static load (vertical stud).

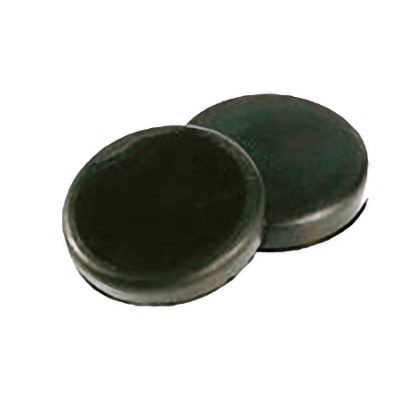

Optional: Non-skid rubber pad.
Supplied not mounted:
Ø 32mm Code 11008800903
Ø 40mm Code 11008800904
Ø 50mm Code 11008900905 (NBR70 Shore A)
Ø 80mm Code 11008900907 (NBR70 Shore A)
If you want the feet with the rubber mounted, please ask.

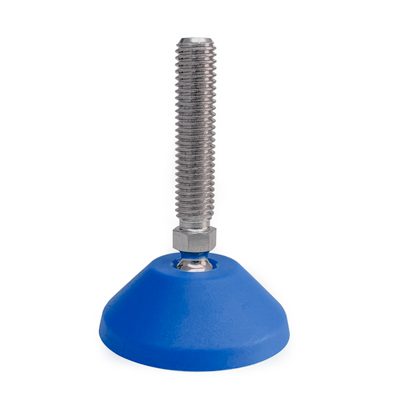

Available in orange colour RAL 2004 and blue colour RAL 5005.
Other colours, ask.

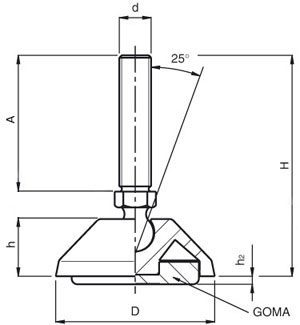

Data Sheet

Code	D	H	h	d	A	h2	Kg*
11008903851	32	67	13	M8	45	2	1000
11008903852	32	92	13	M8	70	2	1000
11008903853	32	67	13	M10	45	2	1000
11008903854	32	92	13	M10	70	2	1000
11008904851	40	67	13	M8	45	3	1000
11008904852	40	92	13	M8	70	3	1000
11008904853	40	67	13	M10	45	3	1000
11008904854	40	92	13	M10	70	3	1000
11008905856	50	72	18	M8	45	2	1000
11008905857	50	97	18	M8	70	2	1000
11008905851	50	72	18	M10	45	2	1000
11008905852	50	97	18	M10	70	2	1000
11008905853	50	72	18	M12	45	2	1000
11008905854	50	97	18	M12	70	2	1000
11008908861	80	73	19	M8	45	2	1000
11008908862	80	98	19	M8	70	2	1000
11008908853	80	73	19	M10	45	2	1000
11008908854	80	98	19	M10	70	2	1000
11008908851	80	73	19	M12	45	2	1000
11008908852	80	98	19	M12	70	2	1000
11008908863	80	98	19	M14	70	2	1000
11008908864	80	148	19	M14	120	2	1000
11008908855	80	98	19	M16	70	2	1000
11008908856	80	148	19	M16	120	2	1000
11008908857	80	128	19	M20	100	2	1000

UNC THREADED VERSION – (Inch measure)
Code	D	H	h	d	A	h2	Lbs*	CAD
11008903855	1.26	2.64	0.51	5/16-18	1.77	0.08	2200
11008903856	1.26	3.62	0.51	5/16-18	2.76	0.08	2200
11008903857	1.26	2.64	0.51	3/8-16	1.77	0.08	2200
11008903858	1.26	3.62	0.51	3/8-16	2.76	0.08	2200
11008904855	1.57	2.64	0.51	5/16-18	1.77	0.12	2200
11008904856	1.57	3.62	0.51	5/16-18	2.76	0.12	2200
11008904857	1.57	2.64	0.51	3/8-16	1.77	0.12	2200
11008904858	1.57	3.62	0.51	3/8-16	2.76	0.12	2200
11008905860	1.97	2.83	0.71	5/16-18	1.77	0.08	2200
11008905861	1.97	3.82	0.71	5/16-18	2.76	0.08	2200
11008905862	1.97	2.83	0.71	3/8-16	1.77	0.08	2200
11008905863	1.97	3.82	0.71	3/8-16	2.76	0.08	2200
11008905864	1.97	2.83	0.71	1/2-13	1.77	0.08	2200
11008905865	1.97	3.82	0.71	1/2-13	2.76	0.08	2200
11008908866	3.15	2.87	0.75	5/16-18	1.77	0.08	2200
11008908867	3.15	3.86	0.75	5/16-18	2.76	0.08	2200
11008908868	3.15	2.87	0.75	3/8-16	1.77	0.08	2200
11008908869	3.15	3.86	0.75	3/8-16	2.76	0.08	2200
11008908870	3.15	2.87	0.75	1/2-13	1.77	0.08	2200
11008908871	3.15	3.86	0.75	1/2-13	2.76	0.08	2200
11008908872	3.15	3.86	0.75	9/16-12	2.76	0.08	2200
11008908873	3.15	5.83	0.75	9/16-12	4.72	0.08	2200
11008908874	3.15	3.86	0.75	5/8-11	2.76	0.08	2200
11008908876	3.15	5.83	0.75	5/8-11	4.72	0.08	2200
11008908877	3.15	5.05	0.75	3/4-10	3.94	0.08	2200
