430050 095
COMPONENTS FOR INDUSTRY
430050 075
Adjustable feet Ø75 sanitizable
Base material: Internal part made of reinforced polyamide; external covering made of stainless steel AISI 304.
Anti-slip pad made of thermoplastic rubber 68 Shore black.
Co-moulded anti-slip pad allows a perfect adherence with steel base. Consequent absence of internal cavities makes foot extremely cleanable. The threaded insert guarantees the protection of the spindle thread.
Locknut available.
*Max. static load (vertical stud).

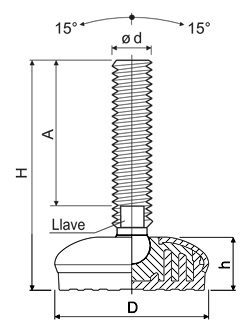

| Code | D | d | A | H | Wrench | h | Kg* | CAD |
|---|---|---|---|---|---|---|---|---|
| 43005007503 | 75 | M16x2 | 60 | 103 | 13 | 26 | 1900 |  |
| 43005007504 | 75 | M16x2 | 90 | 133 | 13 | 26 | 1900 | |
| 43005007505 | 75 | M16x2 | 105 | 148 | 13 | 26 | 1900 | |
| 43005007506 | 75 | M16x2 | 125 | 168 | 13 | 26 | 1900 | |
| 43005007507 | 75 | M16x2 | 155 | 198 | 13 | 26 | 1900 | |
| 43005007508 | 75 | M16x2 | 165 | 208 | 13 | 26 | 1900 | |
| 43005007509 | 75 | M16x2 | 205 | 248 | 13 | 26 | 1900 | |
| 43005007510 | 75 | M20x2,5 | 86 | 132 | 17 | 26 | 2100 | |
| 43005007511 | 75 | M20x2,5 | 116 | 162 | 17 | 26 | 2100 | |
| 43005007512 | 75 | M20x2,5 | 141 | 187 | 17 | 26 | 2100 | |
| 43005007513 | 75 | M20x2,5 | 198 | 244 | 17 | 26 | 2100 | |
| 43005007514 | 75 | M24x3 | 96 | 142 | 19 | 26 | 2300 | |
| 43005007515 | 75 | M24x3 | 122 | 168 | 19 | 26 | 2300 | |
| 43005007516 | 75 | M24x3 | 152 | 198 | 19 | 26 | 2300 | |
| 43005007517 | 75 | M24x3 | 182 | 228 | 19 | 26 | 2300 | |
| 43005007518 | 75 | M24x3 | 300 | 346 | 19 | 26 | 2300 | |
| 43005007519 | 75 | M30x3,5 | 144 | 190 | 24 | 26 | 2500 | |
