COMPONENTS FOR INDUSTRY
420001 40-50 INOX
Adjustable feet Ø40/50 with threaded stainless steel stud
Base material: PA black reinforced polyamide.
Stainless steel stud AISI-304.
Locknut available.
*Max. static load (vertical stud).
Optional: PVC non-slip rubber pad.
Supplied not mounted.
Ø 40 mm Code: 42005001040.
Ø 50 mm Code: 42005001050.

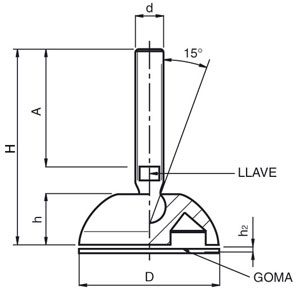

| Code | D | h | d | A | H | Wrench | h2 | Kg* | CAD |
|---|---|---|---|---|---|---|---|---|---|
| 42000104550 | 40 | 13 | M8 | 45 | 68 | 6 | 2,5 | 1000 |  |
| 42000104551 | 40 | 13 | M8 | 65 | 88 | 6 | 2,5 | 1000 | |
| 42000104552 | 40 | 13 | M10 | 35 | 60 | 8 | 2,5 | 1100 | |
| 42000104553 | 40 | 13 | M10 | 70 | 95 | 8 | 2,5 | 1100 | |
| 42000105550 | 50 | 13 | M8 | 45 | 68 | 6 | 2,5 | 1100 | |
| 42000105551 | 50 | 13 | M8 | 65 | 88 | 6 | 2,5 | 1100 | |
| 42000105552 | 50 | 13 | M10 | 35 | 60 | 8 | 2,5 | 1200 | |
| 42000105553 | 50 | 13 | M10 | 70 | 95 | 8 | 2,5 | 1200 | |
| 42000105554 | 50 | 13 | M12 | 43 | 70 | 10 | 2,5 | 1300 | |
| 42000105555 | 50 | 13 | M12 | 63 | 90 | 10 | 2,5 | 1300 | |
