110068 K

SAFETY with threaded insert

Material: PA Black reinforced polyamide with caps in colours: black, orange, red, blue, yellow and grey similar to the RAL indicated below.
Threaded female brass insert, spring in stainless-steel.
Great knob for safety applications.
This knob only turns when pressed downward and turned simultaneously to avoid involuntary turning.

	RAL 7021
	RAL 2004
	RAL 3001
	RAL 5005
	RAL 1021
	RAL 7038

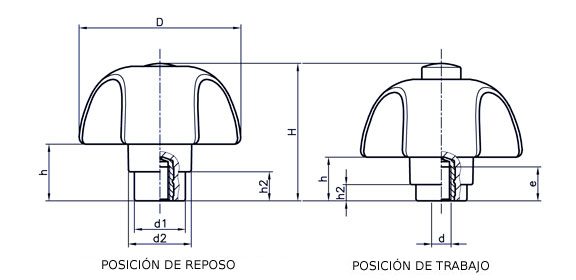

ESQUEMA-110068-K-ejemplo

Black code	Code Orange	Code Red	Code Blue	Code Yellow	Code Grey	D	H	d	e	d1	d2	Body	CAD
11006853001	11006853006	11006853009	11006853012	11006853015	11006853018	50	42	M6	10	16	19,5	Black
11006853002	11006853007	11006853010	11006853013	11006853016	11006853019	50	42	M8	14	16	19,5	Black
11006853003	11006853008	11006853011	11006853014	11006853017	11006853020	50	42	M10	13	16	19,5	Black
11006853024	11006853021	11006853027	11006853030	11006853033	11006853036	50	42	M6	10	16	19,5	Orange
11006853025	11006853022	11006853028	11006853031	11006853034	11006853037	50	42	M8	14	16	19,5	Orange
11006853026	11006853023	11006853029	11006853032	11006853035	11006853038	50	42	M10	13	16	19,5	Orange
11006853042	11006853045	11006853039	11006853048	11006853051	11006853054	50	42	M6	10	16	19,5	Red
11006853043	11006853046	11006853040	11006853049	11006853052	11006853055	50	42	M8	14	16	19,5	Red
11006853044	11006853047	11006853041	11006853050	11006853053	11006853056	50	42	M10	13	16	19,5	Red
11006853060	11006853063	11006853066	11006853057	11006853069	11006853072	50	42	M6	10	16	19,5	Blue
11006853061	11006853064	11006853067	11006853058	11006853070	11006853073	50	42	M8	14	16	19,5	Blue
11006853062	11006853065	11006853068	11006853059	11006853071	11006853074	50	42	M10	13	16	19,5	Blue
11006853078	11006853081	11006853084	11006853087	11006853075	11006853090	50	42	M6	10	16	19,5	Yellow
11006853079	11006853082	11006853085	11006853088	11006853076	11006853091	50	42	M8	14	16	19,5	Yellow
11006853080	11006853083	11006853086	11006853089	11006853077	11006853092	50	42	M10	13	16	19,5	Yellow
11006853096	11006853099	11006853102	11006853105	11006853108	11006853093	50	42	M6	10	16	19,5	Grey
11006853097	11006853100	11006853103	11006853106	11006853109	11006853094	50	42	M8	14	16	19,5	Grey
11006853098	11006853101	11006853104	11006853107	11006853110	11006853095	50	42	M10	13	16	19,5	Grey

Position	D	h	h2
REST	50	17,5	9
WORKING	50	13,5	5

UNC THREADED VERSION – (Inch measure)
Black Cap Code	Orange Cap Code	Red Cap Code	Blue Cap Code	Yellow Cap Code	Grey Cap Code	D	H	d	e	d1	d2	Body	CAD
11006853181	11006853184	11006853187	11006853190	11006853193	11006853196	1.97	1.65	1/4-20	0.40	0.63	0.77	Black
11006853182	11006853185	11006853188	11006853191	11006853194	11006853197	1.97	1.65	5/16-18	0.55	0.63	0.77	Black
11006853183	11006853186	11006853189	11006853192	11006853195	11006853198	1.97	1.65	3/8-16	0.53	0.63	0.77	Black
