470056 MET-INOX
COMPONENTS FOR INDUSTRY
470067 EX

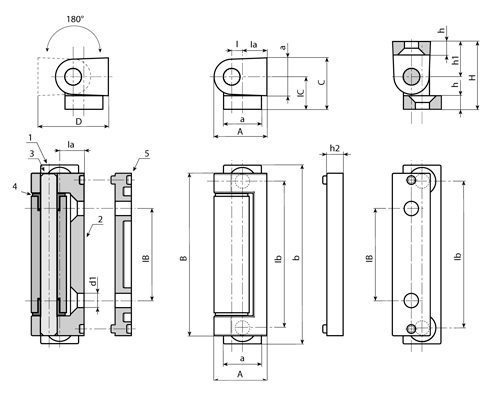

Vertical zamak hinge with extension
Material: (1)(2)(5) Die-cast zamak alloy (zinc, aluminium and copper alloy).
Black epoxy powder coated (RAL 9011) or galvanised.
(3) Stainless steel hinge pivot pin (AISI 304).
(4) Natural PA6 spacer bush.
The hinge is delivered with the pivot pin unassembled, as it must be removed in any case before mounting on the door.
Working temperature from +200° to -30°.
| Code | Ib | IB | A | a | B | b | C | D | H | I | h | h1 | IC | Ia | h2 | d1 | Finish | CAD |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 47006702101 | 54 | 34 | 19,5 | 14 | 60 | 66 | 19 | 24 | – | 4 | 5 | 13 | 12,5 | 9 | – | 5,3 | Black coated |  |
| 47006702102 | 54 | 34 | 19,5 | 14 | 60 | 66 | 19 | 24 | 25 | 4 | 5 | 13 | 12,5 | 9 | 6 | 5,3 | Black coated | |
| 47006702201 | 54 | 34 | 19,5 | 14 | 60 | 66 | 19 | 24 | – | 4 | 5 | 13 | 12,5 | 9 | – | 5,3 | Galvanised | |
| 47006702202 | 54 | 34 | 19,5 | 14 | 60 | 66 | 19 | 24 | 25 | 4 | 5 | 13 | 12,5 | 9 | 6 | 5,3 | Galvanised | |
