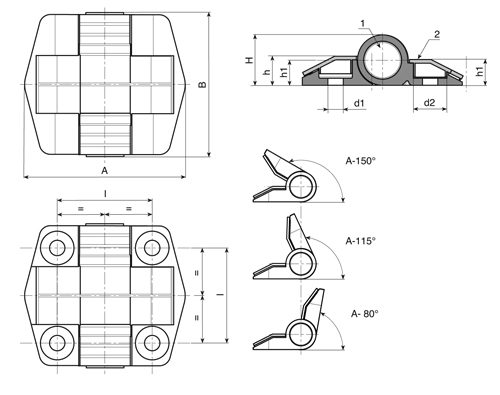

Detent hinge with preset positions and hole cover cap
Material: Reinforced polyamide.
Resistant to oils and greases.
Galvanised steel pin.
(1) Pin cap in PA6.
(2) Hole cover cap in reinforced PA6.
The springs that act on the pivot pin have three torque calibrations: 0.7 Nm, 1.1 Nm and 1.7
| Code | I | A° | Nm | A | B | H | h | h1 | d1 | d2 | CAD |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 47006605301 | 34 | * | – | 51 | 57 | 18 | 10 | 9 | 5,5 | 10,5 |  |
| 47006605302 | 34 | 80° | 0,7 | 51 | 57 | 18 | 10 | 9 | 5,5 | 10,5 | |
| 47006605303 | 34 | 80° | 1,1 | 51 | 57 | 18 | 10 | 9 | 5,5 | 10,5 | |
| 47006605304 | 34 | 80° | 1,7 | 51 | 57 | 18 | 10 | 9 | 5,5 | 10,5 | |
| 47006605305 | 34 | 115° | 0,7 | 51 | 57 | 18 | 10 | 9 | 5,5 | 10,5 | |
| 47006605306 | 34 | 115° | 1,1 | 51 | 57 | 18 | 10 | 9 | 5,5 | 10,5 | |
| 47006605307 | 34 | 115° | 1,7 | 51 | 57 | 18 | 10 | 9 | 5,5 | 10,5 | |
| 47006605308 | 34 | 150° | 0,7 | 51 | 57 | 18 | 10 | 9 | 5,5 | 10,5 | |
| 47006605309 | 34 | 150° | 1,1 | 51 | 57 | 18 | 10 | 9 | 5,5 | 10,5 | |
| 47006605310 | 34 | 150° | 1,7 | 51 | 57 | 18 | 10 | 9 | 5,5 | 10,5 | |
