470071
Solid control handwheel with indicator seat and revolving handle
Material: PA Black reinforced polyamide resistant to oils and greases.
Galvanised steel insert with smooth through bore (tolerance H10).
Brass insert with threaded through hole for the handle.
Revolving handle included.
Use gravity indicators 470085. The indicator and its fixing grub screw (d7) are to be purchased separately..
Upon request can be supplied the indicator mounted to the handwheel.See combinations diameters/indicators:
d5= 52,4 – indicator 4700855…
d5= 87,4 – indicator 4700858…
(*) With adapter 470079 it is possible to use indicator 4700855…

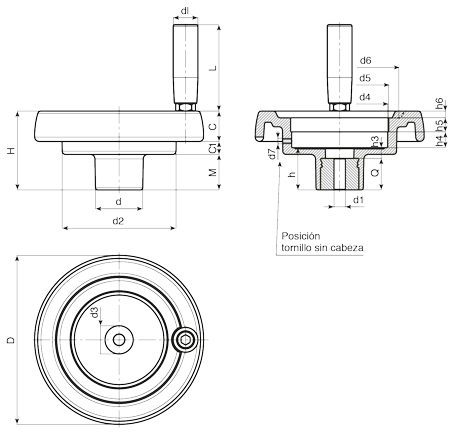

| Code | D | H | d | d2 | M | C | C1 | d3 | d4 | d5 (K650) | d6 | d7 | h | h3 | h4 | h5 | h6 | dl | L | Dm | d1 H10 | Q | CAD |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 47007108000 | 86 | 53 | 32 | 62 | 21 | 17 | 15 | 20 | 50,8 | 52,4 | 63 | M6 | 26,5 | 6,5 | 11,5 | 12 | 3 | 20 | 56 | 12 | 5,8 | 20 |  |
| 47007110000 | 99 | 55,5 | 32 | 63 | 23,5 | 20,5 | 11,5 | 20 | 50,8 | 52,4 | 68 | M6 | 29 | 9 | 11,5 | 12 | 3,5 | 20 | 56 | 12 | 6,8 | 20 | |
| 47007113000 | 129 | 64,5 | 42 | 100 | 27,5 | 23 | 14 | 29 | 85,7 | 87,4* | 90 | M6 | 34 | 10 | 13,5 | 12,5 | 5 | 21 | 65 | 20 | 6,8 | 24 | |
| 47007115000 | 149 | 69 | 42 | 101 | 31 | 25,5 | 12,5 | 29 | 85,7 | 87,4* | 106 | M6 | 37 | 9 | 13,5 | 12,5 | 6,5 | 23 | 76 | 20 | 6,8 | 28 | |
| 47007117000 | 175 | 72 | 40 | 115 | 28,5 | 32 | 11,5 | 25 | 85,7 | 87,4* | 126,5 | M6 | 38 | 10 | 12,5 | 14 | 8 | 25 | 86 | 20 | 6,8 | 28 | |
| 47007120000 | 199 | 71 | 46 | 137 | 24 | 32 | 15 | 29 | 85,7 | 87,4* | 144 | M6 | 34 | 11 | 13,5 | 12,5 | 10 | 25 | 86 | 22 | 6,8 | 23 | |
