Flush pull handle SG
Material: AL Anodized aluminium.
Profiled aluminium tray, natural colour anodized.
Side end caps of polyamide PA 6, glass ball reinforced, black, half-matt with fine structure.
Version A: Mounting from behind by included setscrews, M6 x 30 (2x) and M6 x 40 (2x), DIN 914 made of stainless steel.
Version B: Mounting from outside for countersunk screws, M4 x 10, DIN 963/964/966.
Design advantages: Simple mounting for wallthicknesses of 1- 5 mm.
Version B includes two screws for a strong hold and in case it is not possible to access the interior to place the 2nd rubber insert.
For assembly you have to insert the lower part with its rubber insert and then place the two sides of black polyamide.
Then place the 2nd rubber insert in version A or the two screws in version B.

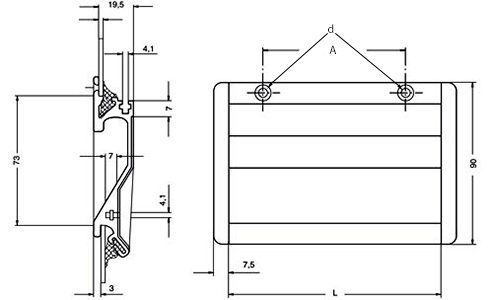

| Code | L | A | d | Agujero para Attachment | Versión | Color | CAD |
|---|---|---|---|---|---|---|---|
| 31000910011 | 100 | – | – | 104×73 | A | Natural |  |
| 31000911011 | 118 | – | – | 122×73 | A | Natural | |
| 31000916011 | 167 | – | – | 171×73 | A | Natural | |
| 31000910014 | 100 | – | – | 104×73 | A | Black | |
| 31000911014 | 118 | – | – | 122×73 | A | Black | |
| 31000916014 | 167 | – | – | 171×73 | A | Black | |
| 31000910021 | 100 | 60 | 4,5 | 104×73 | B | Natural | |
| 31000911021 | 118 | 78 | 4,5 | 122×73 | B | Natural | |
| 31000916021 | 167 | 127 | 4,5 | 171×73 | B | Natural | |
| 31000910024 | 100 | 60 | 4,5 | 104×73 | B | Black | |
| 31000911024 | 118 | 78 | 4,5 | 122×73 | B | Black | |
| 31000916024 | 167 | 127 | 4,5 | 171×73 | B | Black | |
