Flush inset handle KS

Material: Polyamide PA 6, glass ball reinforcement.
4 different colour versions.
Suitable for a panel thickness between 1-5 mm.
Includes galvanised oval head screws with cross recess DIN 7985.

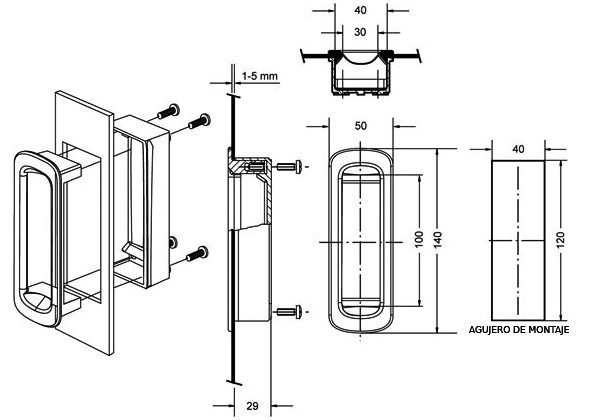

Mounting:
The front section is first set into the recess in the housing panel. The rear section is now pushed onto the front section which projects into the housing interior. The handle is than fixed in position with the aid of 4 screws.
